"Nagmani Lathe" offers wide range of lathe machines of various sizes, specifications and features depending on the Customer requirement. our Lathe Machines are extensively used in various fields like automobiles/ Rubber Roller / Sugar mill / Paper mill / heavy engineering and over & above all general engineerint maintenance workshop

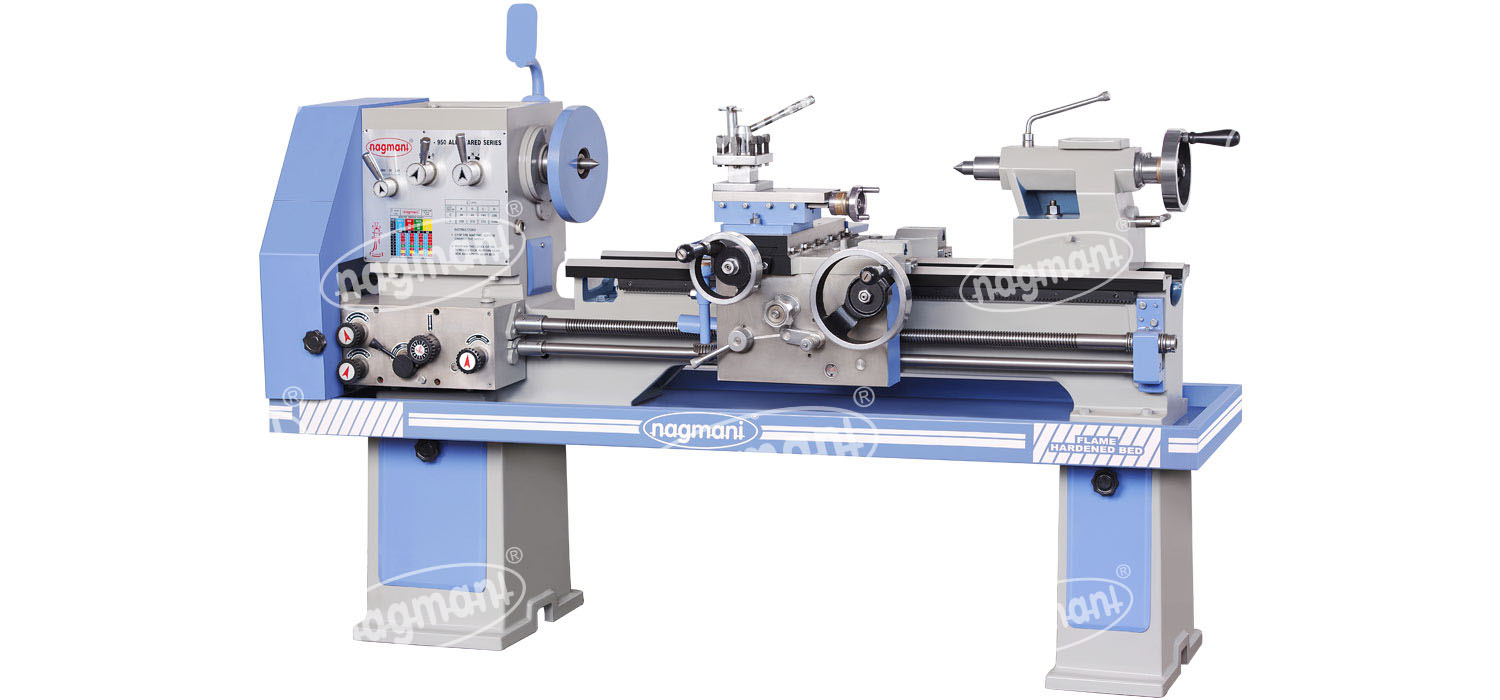

Medium Duty Geared Head Lathe Machine is Specially Designed for the high RPM upto 1200 / 8 Speed and also the Main drive of headstock is driven by gears which gives. Machine widely used in Engineering Colleges, Repairing Shop, Tool Room Workshop etc.
| Bed | MAG-1 | MAG-2 | MAG-3 | MAG-4 |
|---|---|---|---|---|
| Length of Bed | 4 1/2'(1372) | 6'(1830) | 7'(2135) | 8'(2440) |
| Width of Bed | 11"(280) | 11"(280) | 11"(280) | 11"(280) |
| Length of Gap | 4.5"(115) | 4.5"(115) | 4.5"(115) | 4.5"(115) |
| Length of Gap in Front of Fce Plate | 5"(130) | 5"(130) | 5"(130) | 5"(130) |
| Capacity | MAG-1 | MAG-2 | MAG-3 | MAG-4 |
|---|---|---|---|---|
8.5" Centre Height with 40mm Bore |
10" Centre Height with 52mm Bore |
|||
| Height of Centre | 8.5"(215mm) |
10"(250mm) |
||
| Swing Ove Bed | 16.5"(423mm) |
19.5"(495mm) |
||
| Swing Over Cross Slide | 10"(250mm) |
13"(330mm) |
||
| Swing In Gap | 24"(610mm) |
27"(685mm) |
||
| Admin Between Centre | 20"(500) | 38"(950) | 50"(1255) | 62"(1560) |
| Movement of Cross Slide | 10"(250) | 10"(250) | 10"(250) | 10"(250) |
| Movement of Compound Slide | 5.5"(140) | 5.5"(140) | 5.5"(140) | 5.5"(140) |
| Main Spindle | MAG-1 | MAG-2 | MAG-3 | MAG-4 |
|---|---|---|---|---|
| Type of Spindle | Threaded |
|||
| Spindle Bore | Standard 38mm & Optional 52mm |
|||
| Spindle Morse Taper | MT-5 |
|||
| Spindle Adapter Morse Taper | Mt-3 |
|||
| No. of Speed / RPM Range | 8 / 54 , 90 , 140 , 24 , 315 , 500 , 775 , 1200 |
|||
| Tailstock Spindle | MAG-1 | MAG-2 | MAG-3 | MAG-4 |
|---|---|---|---|---|
| Diameter | 2"(50.8) |
|||
| Morce Taper | MT-4 |
|||
| Travel | 6"(145mm) |
|||
| Threads (For Fully Norton Gear Box.) | MAG-1 | MAG-2 | MAG-3 | MAG-4 |
|---|---|---|---|---|
| Metric Thread | (Total 17) / 0.5mm to 15mm Pitch |
|||
| Inch Thread | (Total 40) / 2 TPI to 60 TPI |
|||
| Lead Screw Dia | 1.25"(32mm) |
|||
| Electricals | MAG-1 | MAG-2 | MAG-3 | MAG-4 |
|---|---|---|---|---|
| Motor Power | 2 HP/1.5 Kw III Phase x 1440 RPM |
|||
| General | MAG-1 | MAG-2 | MAG-3 | MAG-4 |
|---|---|---|---|---|
| Floor Space(mm) | 1550 x 900 | 2000 x 900 | 2300 x 900 | 2600 x 900 |
| Approx Case Dimention (L x W x H) | 1650 x 1000 x 1330 | 2100 x 1000 x 1330 | 2400 x 1000 x 1330 | 2700 x 1000 x 1330 |
| Approx Weight | - | - | - | - |
Note: As improvements are constantly made in our machines, the above illustrations, specifications, dimensions and technical data are subject to odification and changewithout prior notice and not binding on us. The descriptions of standard accessories confirms to it's list and not the photograph of the machine shown I the catalogue
